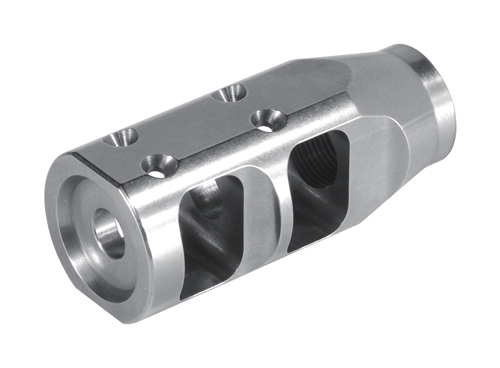

JP Large-Profile Compensator
1/2-28 TPI
.875 OD
.223 (.281 Exit)
Stainless steel
For those who prefer the slimmer, more conventional appearance of the JP Compensator line but demand maximum performance truly on par the effectiveness of JP Recoil Eliminator, the TRE-5 Series of our compensators fits the bill. At 1.2" outside diameter, these compensators don't meet the 1" x 3" restriction that spawned the original JP Compensators, but for the duty use, hunting, recreation, or most any other use, the TRE-5 Series offers a slight edge on performance over its little brothers without a radical aesthetic departure.
Package includes compensator and instruction sheet.
Features:
- Redirects muzzle gasses to cancel out a large portion of recoil impulse
- Provides dramatically improved sight recovery for faster follow-up shots
- Minimized muzzle rise
- Reduced recoil fatigue
Specifications:
- Material: 416 stainless
- Finish: Polished
- Weight: 6.064 oz.
- Thread Pitch: 1/2-28 TPI
- Nut Diameter: .925" OD
- Comp OD: 1.22" OD
- Length: 2.75"
- Exit: .281"
Usage
- 1/2-28 TPI is the industry standard for AR-15-type rifles and also appropriate for custom applications.
- This model's final exit hole of .281 will accommodate bores up to .243/6mm. This exit hole can be enlarged to accommodate bores up to .358.
Finish Option: TACFIN
Instead of the standard, high-polish finish, this muzzle treatment is also available in our bead-blasted TACFIN selectable at right. This non-reflective, matte gray surface finish will also be applied to a matching jam nut at no additional charge if purchased at the same time.
