.22 LR Ultralight Shrouded Barrel
A necessary component for your competition rimfire rifle, the JP .22 LR Ultralight Barrel is a 5.5" steel barrel extended to an ATF-legal 16" thanks to a light-weight aluminum shroud. Weighing in at more than 10 oz. less than a comparable 16" barrel, this barrel also places most of the weight close to the receiver. This translates to lightning-fast transitions and a more satisfying competition performance.
Manufactured to our exacting specifications and used in all of our rifles, the JP Supermatch™ steel barrel is turned from 416R stainless steel, lead lapped and air-gauged.

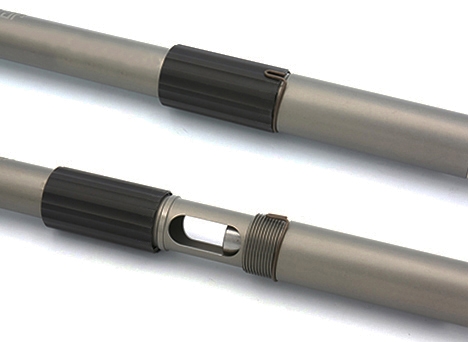

This design also incorporates a cleaning port to allow easier access to the barrel muzzle. The cover for this port is removable to avoid interference with any Mil-Spec sized barrel nut. Replacement cleaning port covers for this barrel are available here.

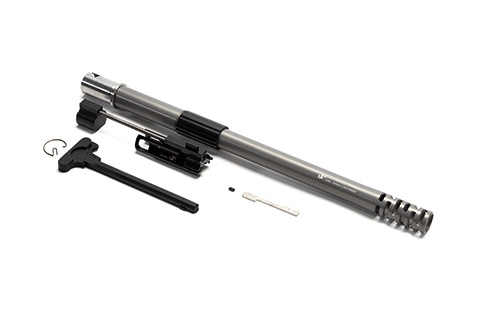

Components
The same components we use for our .22 LR conversions, this bundle includes all components shown above and required for your own custom rimfire build:
- .22 LR barrel
- LMOS™ bolt assembly
- Special charging handle
Specifications
Chamber: .22 LR
Length: 5.5" steel barrel with welded aluminum shroud to 16"
Twist: 1:16 button rifled
Contour: Ultralight
Muzzle Threads: n/a
Material: 416R Stainless Steel/6061-T6 aluminum
Finish: Hardcoat anodizing
Weight: 18.9 oz. (barrel) | 8.5 oz. (bolt)
