JP Adjustable Gas System
Low profile | 2-Piece
.875 bore
Black stainless steel
Detent Adjustment

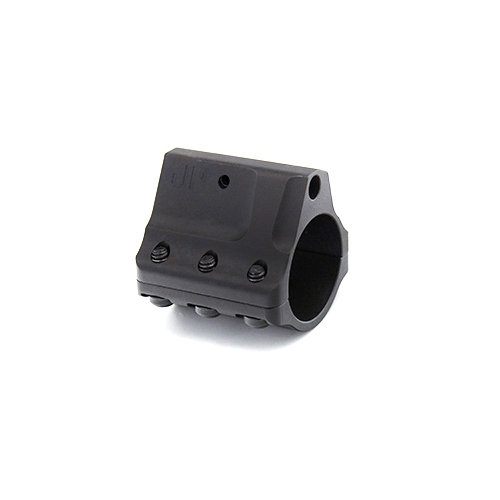

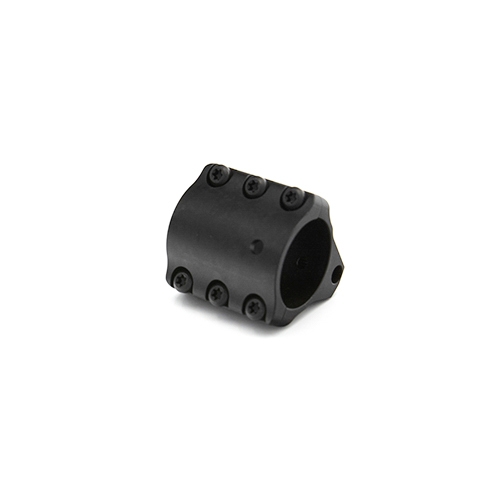

The JPGS-10D is our minimized small-bore design intended to mount underneath many hand guard models on the market. Its two-piece design allows for easier installations even on barrels with pin-and-weld muzzle treatments.
This model features our click-adjustable detent system for precise adjustments and secure retention of your gas screw. Never lose you gas setting or screw.
Features:
- Click-adjustable detent system for repeatable setup and secure retention of gas setting
- Five clicks per rotation of gas screw for finer adjustments
- Two-piece design for easy installation even on pin-and-weld barrels
- Easy to access side gas adjustment
- Internally retained detent components means no lost parts

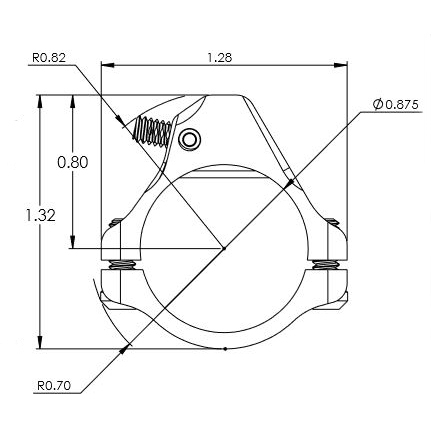

Specifications:
- Barrel Diameter: .875
- Material: 416 stainless
- Finish: Black
- Weight: 2.4 oz.
- Length: 1.28"
- Height: 1.32" (overall), .80" (over bore)
- Width: 1.28"
- Attachment: 6-32 x 3/8" socket head screws, T15 Torx drive (included)
(includes 5/64 x 5/16 roll pin for Gas Tubeation)
- Adjustment: 6-32, 1/16 hex drive (included)
