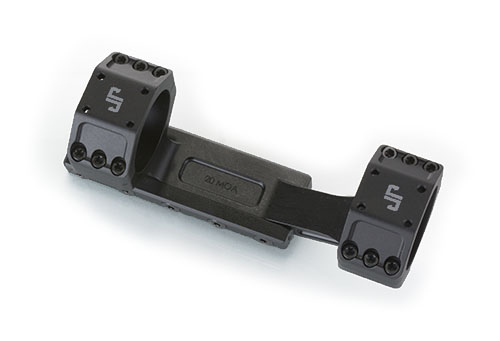

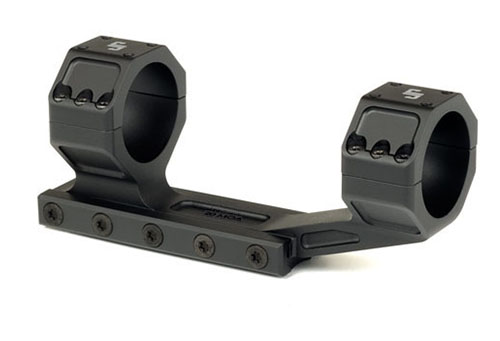

JP Flat-Top Scope Mount
34mm
20 MOA
The 34mm JP Flat-Top Scope Mount attaches to any standard Picatinny rail and features an integrated recoil lug for stability. Ideal for AR applications, its intermediate height can accommodate up to a 56mm objective while the mount rings will fit any 34mm scope tube. This 20 MOA version provides precision shooters the additional range of elevation required to utilize their rifle/optic combination of choice.
The mounting straps also come with pre-drilled holes for piggyback mounting of the JPoint Microelectronic reflex sight using the JPA-GUARD protective wings.
- Features integrated recoil lug
- Intermediate height is ideal for AR applications and will accommodate a 56mm objective.
- 20 MOA cant for greater range of elevation adjustment
- Weight: 6.9 oz.
- Height to centerline (at center): 1.47" over rail
- Total height over rail (at center): 2.70" (small frame), 2.80" (most large frame)
- Attachment: 5 countersunk flat head screws on clamping rail, 6-32 screws (x6) on each strap piece (Torx keys included)
Compatibility:
This mount is not compatible with the Schmidt & Bender PM II 5-25x56mm.
